Heavy Duty Hand Pumps P90X
MODEL: P90 SERIES
Dual speed models
Max. working pressure:
700 – 1000 bar
Description
- High pressure hydraulic hand pumps are the solution for tough jobs.
- Reduced handle effort and ergonomic grip for less operator fatigue.
- Dual-speed operation for fast and easy operation.
- Vent free reservoir eliminated spills.
- Quick grip handle allows for easy transport.
- Integral reservoir with over-pressurization protection.
- Chrome plated plunger and wiper system for durable, long lasting performance.
- P904D equipped with Control vavle for applying with double-acting cylinders.
| Model No. | Pressure Rating (bar) | Oil Capacity (c.c.) | Oil Volume per Stroke (c.c.) | Weight (kgs) | ||
|---|---|---|---|---|---|---|
| 1st Stage | 2nd stage | 1st Stage | 2nd stage | |||
| P901 | 20 | 700 | 450 | 19.4 | 1.2 | 6.5 |
| P902 | 20 | 700 | 850 | 19.4 | 2.8 | 7.8 |
| P903 | 20 | 700 | 1600 | 19.4 | 2.8 | 10.0 |
| P904 | 27.5 | 700 | 2500 | 39.5 | 2.8 | 13.5 |

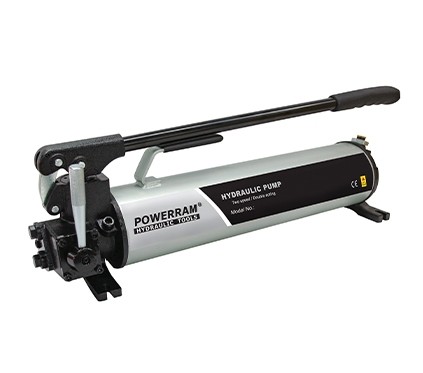

| P904D | 27.5 | 700 | 2500 | 35.6 | 2.8 | 15.0 |
| P905 | 20 | 1000 | 850 | 19.4 | 1.2 | 7.8 |
