Heavy Duty Hand Pumps PA-PB
MODEL: PA & PB SERIES
Single & Dual-speed models
Large 3/8″ NPT pressure port for max. flow
Low handle force for easy operation
Max. working pressure: 700 bar
Description
- Powerram heavy duty hand pumps are feature with forged and welded construction to prevent collision and deformation.
- Professional choice for a wide range of industrial applications.
- Both single and Dual-speed models are available.
- Internal overload relief valve prevents pump from being used beyond tis rated capacity.
- External adjustable relief valve with anti-losing mechanism design.
- Carrying handle for easy portability.
| Single-Speed Heavy Duty Hand Pumps | ||||||
|---|---|---|---|---|---|---|
| Model No. | Pressure Rating (bar) | Usable Oil Capacity (c.c.) | Oil Volume per Stroke (c.c.) | Weight (kgs) | ||

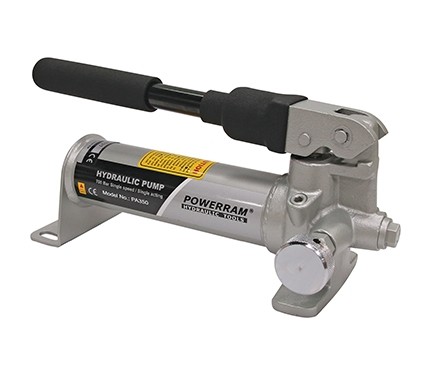

| PA350 | 200 | 250 | 3.1 | 5.0 | ||

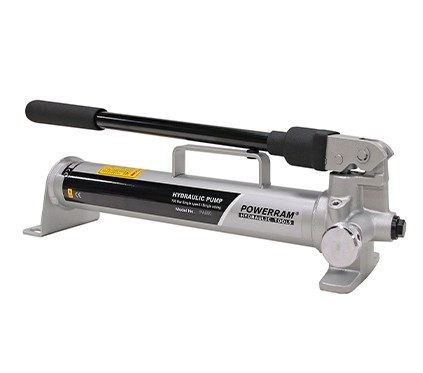

| PA600 | 700 | 550 | 3.1 | 6.1 | ||
| PA700 | 700 | 640 | 3.1 | 6.5 | ||
| Dual-Speed Heavy Duty Hand Pumps | ||||||
| Model No. | Pressure Rating (bar) | Usable Oil Capacity (c.c.) | Oil Volume per Stroke (c.c.) | Weight (kgs) | ||
| 1st Stage | 2nd stage | 1st Stage | 2nd stage | |||
| PB350 | 20 | 700 | 250 | 13.0 | 2.8 | 5.5 |
| PB600 | 20 | 700 | 550 | 13.0 | 2.8 | 7.0 |

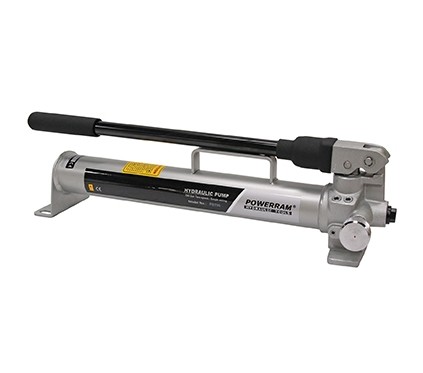

| PB700 | 20 | 700 | 640 | 13.0 | 2.8 | 7.3 |
