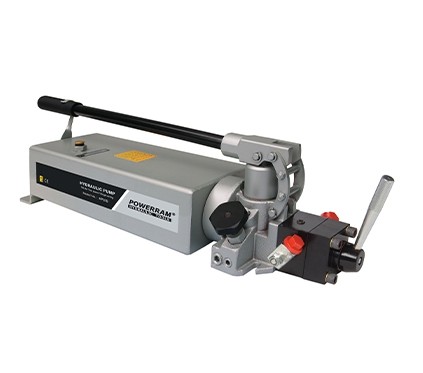

Heavy Duty Hand Pumps HP35-HP50
MODEL: HP35 & HP50 Series
Dual-speed model
Large 3/8″ NPT pressure port for maximum flow.
Max. working pressure: 700 bar
Description
- Casting tank made of steel.
- Internal overload relief valve prevents pump from being used beyond its rated capacity.
- HP35 & HP35D are ideal for double-acting cylinders without the need for additional control valve.
| Model No. | Pressure Rating (bar) | Oil Capacity (c.c.) | Oil Volume per Stroke (c.c.) | Weight (kgs) | ||
|---|---|---|---|---|---|---|
| 1st Stage | 2nd stage | 1st Stage | 2nd stage | |||
| HP35 | 28 | 700 | 3500 | 30 | 3 | 16.5 |
| HP35D | 28 | 700 | 3500 | 30 | 3 | 19.0 |
| HP50 | 28 | 700 | 5000 | 30 | 3 | 20.0 |
| HP50D | 28 | 700 | 5000 | 30 | 3 | 22.5 |
