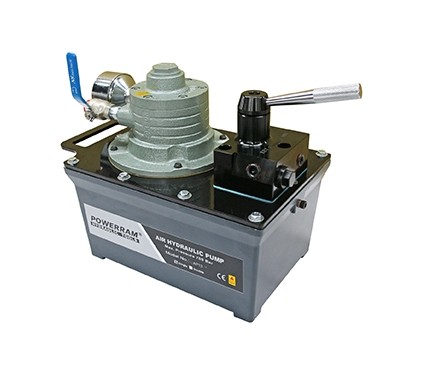

Air Hydraulic Pumps – 3 Ltr AP13
MODEL: AP13 SERIES
Single & Double acting models
Max. working pressure:700 bar
Description
- Dual-speed operation for fast speed cylinder advance.
- 3L durable aluminum reservoir design.
- Air motor capable of starting under full load.
- Automatic overload relief valve protects components in hydraulic system and ensure safe operation.
| Model No. | Acting | Max.Pressure Output(psi) |
Reservori Capacity (c.c.) |
Usable Oil Capacity (c.c.) |
Valve | Weight (kg) |
|
|---|---|---|---|---|---|---|---|
| Type | Function | ||||||
| AP13S | Single | 10,000 | 3000 | 2400 | 2 Position / 2 Way |
Advance / Retract* |
14.4 |

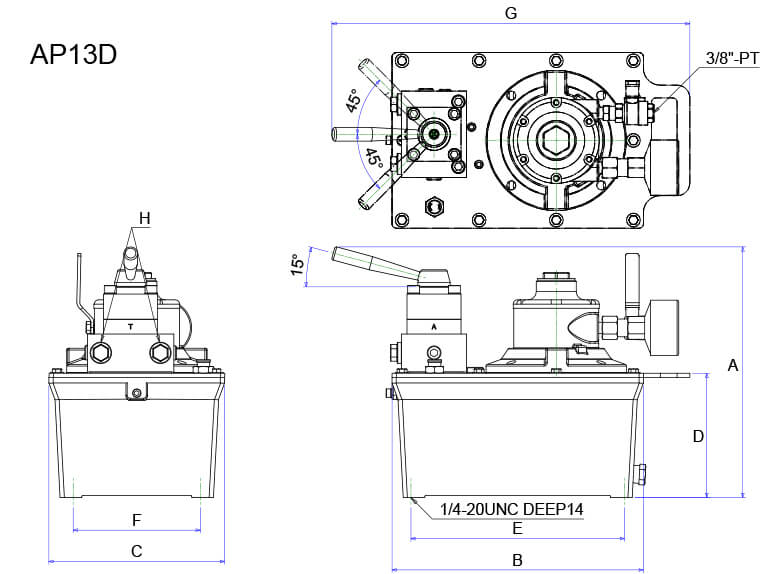

| AP13D | Double | 10,000 | 3000 | 2400 | 3 Position / 4 Way |
Advance / Hold / Retract |
15.4 |
