Air Hydraulic Foot Pumps AP1600-AP8000

MODEL: AP1600 & AP3000 & AP8000 SERIES

Single & Double acting models

Max. Output Pressure: 700 bar / 10,000 psi

Description

Oil capacity can be modified according to your specific application.
Air-power hydraulic pump is designed for using with single-acting cylinders and tools.
Rugged construction that most components are made of Aluminum alloy and built for long service life, easy operation and portability.
Automatic overload relief setting as 10, 000 psi protects components in hydraulic system and ensure work safety.
New inlet & outlet design features low exhausting air volume, quiet effect and can be operated in all directions.

Model No.	Acting	Max.Pressure Output(psi)	Input Air Pressure (kg)	Reservoir Capacity (c.c.)	Usable Oil Capacity (c.c.)	Valve		Weight (kg)
Model No.	Acting	Max.Pressure Output(psi)	Input Air Pressure (kg)	Reservoir Capacity (c.c.)	Usable Oil Capacity (c.c.)	Type	Function	Weight (kg)

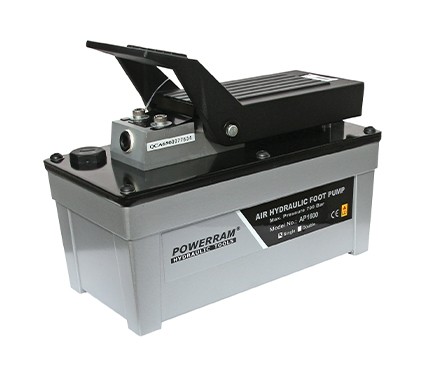

AP1600S	Single	10,000	7-10	1600	1300	─	Advance	7.3

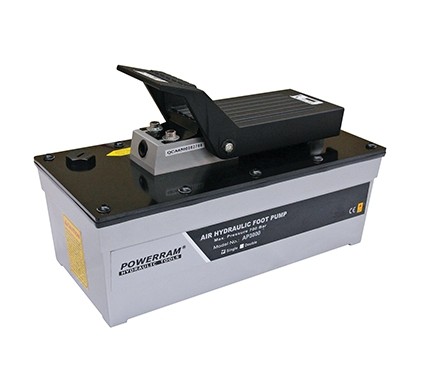

AP3000S		10,000	7-10	3000	2500			9.1

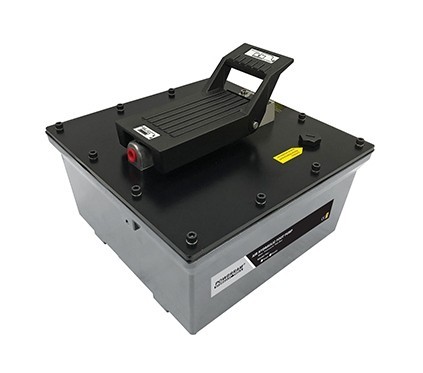

AP8000S		10,000	7-10	8000	7200			19.1

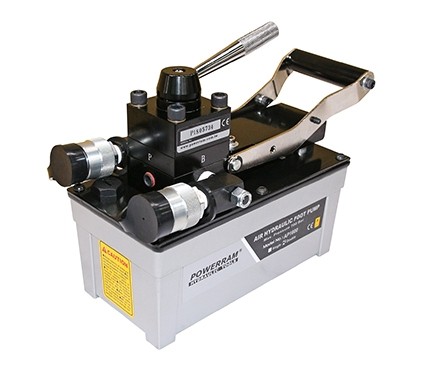

AP1600D	Double	10,000	7-10	1600	1300	3 Position / 4 Way	Advance / Hold / Retract	9.3

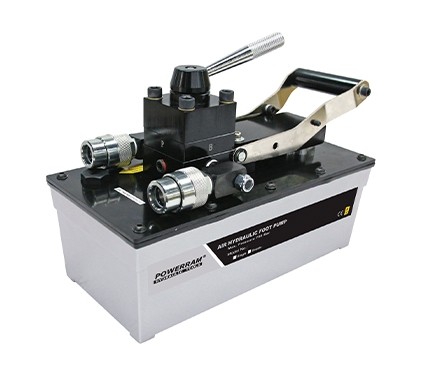

AP3000D		10,000	7-10	3000	2500			12.0
AP8000D		10,000	7-10	8000	7200			31.5
