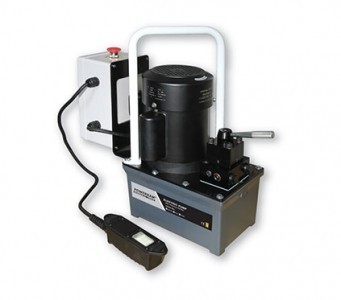

Electric Pumps – 3 Ltr EP13
MODEL: EP13 SERIES
ELECTRIC PUMPS, 3 LITER
Max. Working Pressure: 700 bar / 10,000 psi
Description
- Original pumps are built with 1/2 HP, 220V, 50/60Hz, Single phases universal brushless motor.
- Internal relief valve (700 bars) protects the components and work safety.
- Pumps are included with 24V, 3 meters remote control cord.
- Quiet pumps comply OSHA noise limitation (80dBA at 700bar).
- EP13D specially designed for double-acting cylinders without the need for additional control valve and adapters.
- Conform to CE standards.
- Both models are available with Solenoid Valve version.
| Model No. | Acting | RPM 50/60 Hz |
Reservoir Capacity (c.c.) |
Usable Oil Capacity (c.c.) |
Motor | Valve | Weight (kg) |
|
|---|---|---|---|---|---|---|---|---|
| Type | Function | |||||||
| EP13S | Single | 2860 / 3450 | 3,000 | 2,400 | 0.45 kW 110V / 220V 50/60 Hz Single Phase |
2 Position / 2 Way |
Hold /Retract |
28.5 |
| EP13SS* | ||||||||
| EP13D | Double | 3 Position / 4 Way |
Adv./Hold /Retract |
|||||
| EP13DS* | ||||||||
| *Solenoid version The weight is excluding the hydraulic oil |
||||||||
