Separate Hydraulic Pullers PRE400-PRE3000
Capacity: 4 – 30 Ton
Max. Reach: 190 – 415mm
Max Spread: 315 – 620mm
Description
- Self-centering and fast-acting jaws are absolutely user-friendly for operating.
- 360o Rotary socket can be operated in all directin.
- The extension rods can be used for extra reach when necessary.
- The integral safety valve can prevent the puller being overloaded.
- The convertible 2 / 3 way hydraulic easy puller provide the best and cost saving choice for the
users. - Suggested Hand Pumps:
4-12 Ton: PB600BG or AHP701BG
20-30 Ton: PB700BG or AHP702BG
| Separate Hydraulic Easy Pullers | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | Model No. | Reach (Max. mm) | Spread (Max. mm) | Stroke (mm) | Weight (kg) | ||||||
| H | |||||||||||
| 4 Ton | PRE400 | 190 | 315 | 60 | 7.4 | ||||||

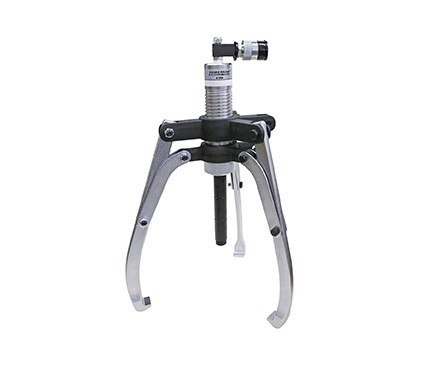

| 8 Ton | PRE800 | 280 | 460 | 85 | 14.0 | ||||||

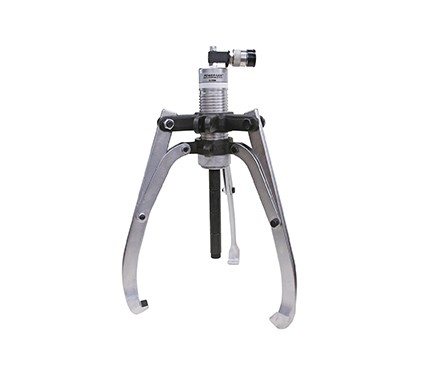

| 12 Ton | PRE1200 | 300 | 515 | 85 | 17.0 | ||||||

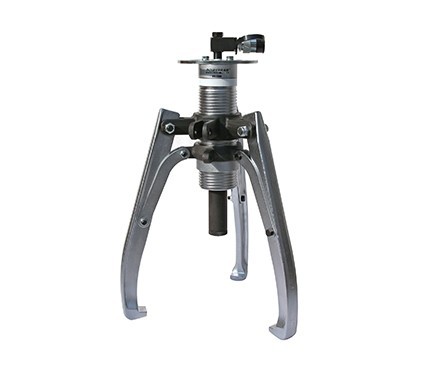

| 20 Ton | PRE2000 | 325 | 520 | 111 | 36.7 | ||||||
| 30 Ton | PRE3000 | 415 | 620 | 111 | 56.5 | ||||||
