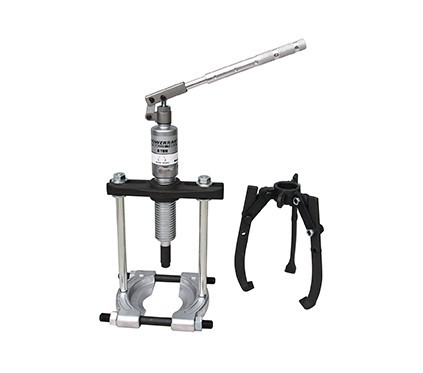

Hydraulic Puller – Package Models PM420-PM1220
Capacity: 4 – 12 Ton
Max. Reach: 211.5 – 288mm
Max Spread: 255 – 375mm
Description
- Four stages of foldable & removable handle saves the handle force during operation.
- 360o rotary socket.
- Self-contained hydraulic pump and puller body with integral safety valve.
- Spring loaded live centering nut for easy job (removable).
- 2 jaws puller cross head with manganous-phospate plated for rust proof and durability.

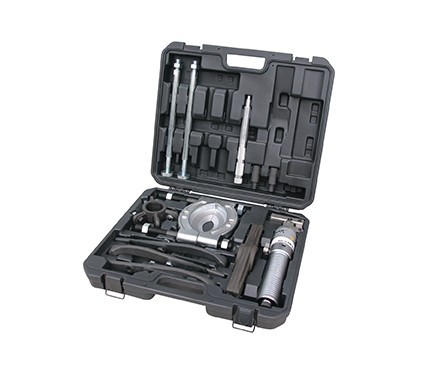

- Package including puller body, jaw assembly, cross bearing, extension bar and blow molded case for practical and safe works.
| Separate Hydraulic Pullers – Package Model | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model No. | Capacity | Reach (Max.mm) |
Reach (Min mm) |
Stroke (mm) |
Weight (kg) |
||||||
| A | B | H | |||||||||
| PM420 | 4 Ton | 185 / 224 | 255 / 145 | 60 | 12.4 | ||||||
| PM620 | 6 Ton | 220 / 255 | 330 / 220 | 70 | 17.0 | ||||||
| PM820 | 8 Ton | 230 / 255 | 350 / 230 | 85 | 20.0 | ||||||
| PM1220 | 12 Ton | 270 / 298 | 375 / 310 | 85 | 17.2 / 20.6 (Puller / acc. set) |
||||||
