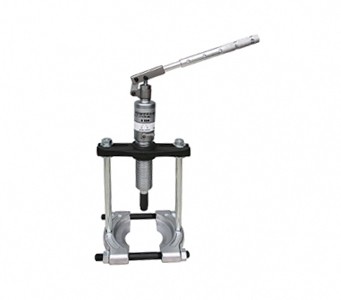

Cross-Bearing-Puller
Description
- Forged of high strength steel alloy.
- Heat treated, Chrome plated for rust proof and durable life.
- Wedge-shaped edges allow removal of the most hard to grip components.
- Cross bearing pullers are easy to be applied on the most difficult parts for fast and efficient removal.

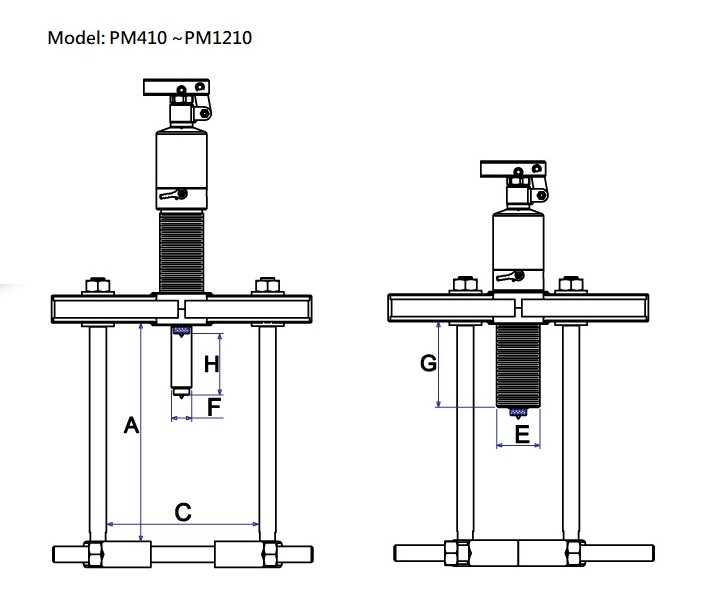

| Cross Bearing Pullers | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model No. | Capacity | Reach (Max.mm) |
Spread (Max.mm) | Stroke (mm) |
Pump Tip(mm) | |||
| A | C | H | E | F | G | |||
| PM410 | 4 Ton | 224 | 145 | 60 | 42 | 22 | 84 | |
| PM610 | 6 Ton | 255 | 220 | 70 | 45 | 23 | 90 | |
| PM810 | 8 Ton | 255 | 230 | 85 | 50 | 25 | 122 | |
| PM1210 | 12 Ton | 298 | 310 | 85 | 60 | 28 | 115 | |
| Accessory Set | ||||||||
| Model No. | Capacity | A (mm) | B (mm) Min – Max | C (mm) | CC (mm) Min-Max | Thread (inch) | Bearing Attachment | Weight (kg) |
| P412 | 4 Ton | 224 | 12 – 70 | 163 | 100 – 145 | 1/2″ – 13UNC | YC9015 | 6.5 |
| P612 | 6 Ton | 255 | 28 – 150 | 260 | 115 – 220 | 5/8″ – 11UNC | YC9025 | 10.5 |
| P812 | 8 Ton | 255 | 28 – 150 | 260 | 110 – 230 | 5/8″ – 11UNC | YC9025 | 10.5 |
| P1212 | 12 Ton | 298 | 20 – 200 | 360 | 140 – 310 | 3/4″ – 10UNC | YC9035 | 11.5 |

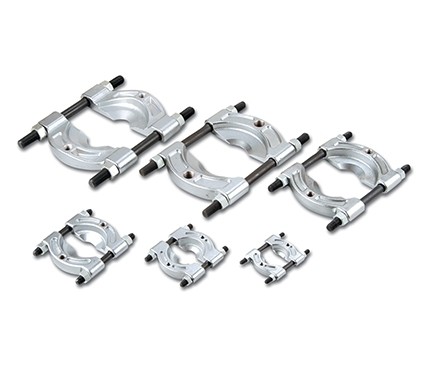

| Bearing Attachments | ||||||||
| Model No. | D (mm) Min – Max | C (mm) | L (mm) | I (mm) | T (inch) | M (inch) | Weight (kg) | |
| YC9005 | 5 – 60 | 17 | 120 | 92 | 3/8-24UNF | 3/8-16UNC | 0.7 | |
| YC9010 | 15 – 60 | 20 | 135 | 130 | 1/2-20UNF | 3/8-16UNC | 1.5 | |
| YC9015 | 12 – 70 | 27 | 165 | 156 | 5/8-18UNF | 1/2-12UNC | 2.5 | |
| YC9025 | 28 – 150 | 33 | 275 | 207 | 3/4-16UNF | 5/8-11UNC | 5.5 | |
| YC9035 | 20 – 200 | 38.5 | 350 | 240 | 1-14UN | 3/4-10UNC | 11 | |
| YC9035A | 20 – 200 | 38.5 | 350 | 240 | 1-14UN | 1-14UN | 11 | |
