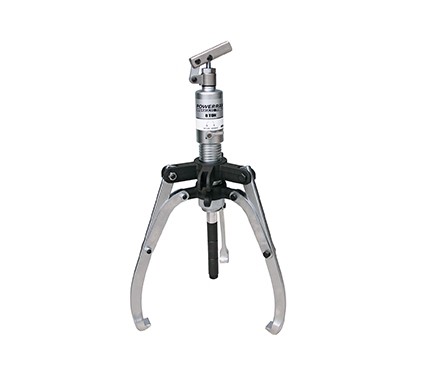

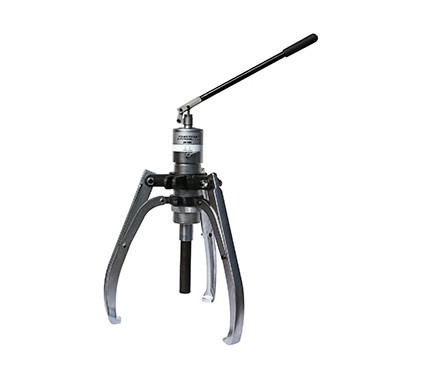

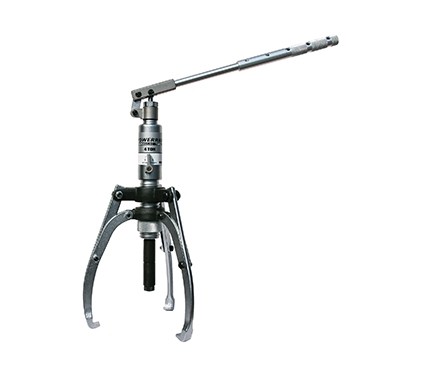

Hydraulic Easy Pullers PME400-PME3000
Capacity: 4 – 30 Ton
Max. Reach: 190 – 415mm
Max Spread: 315 – 620mm
Description
- Self-centering and fast-acting jaws are absolutely ser-friendly for operating.
- 360o Rotary socket can be operated in all direction.
- The extension rods can be used for extra reach when necessary.
- The self-contained hydraulic pump provide easy job without the necessary of additational
cylinder, pump & hose. - The integral safety valve can prevent the puller being overloaded.
- The convertible 2 / 3 way hydraulic easy puller provide the best and cost saving choice for the
users.
| Hydraulic Easy Pullers | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | Model No. | Reach (Max. mm) | Spread (Max. mm) | Stroke (mm) | Weight (kg) | ||||||
| H | |||||||||||
| 4 Ton | PME400 | 190 | 315 | 60 | 9.3 | ||||||
| 6 Ton | PME600 | 230 | 390 | 70 | 9.8 | ||||||
| 8 Ton | PME800 | 280 | 460 | 85 | 15.3 | ||||||
| 12 Ton | PME1200 | 300 | 515 | 85 | 18.4 | ||||||
| 20 Ton | PME2000 | 325 | 520 | 111 | 46.0 | ||||||
| 30 Ton | PME3000 | 415 | 620 | 111 | 61.8 | ||||||
