Electric Pumps – 11 Ltr EP211
MODEL: EP211 SERIES
ELECTRIC PUMPS, 11 LITER,
Max. Working Pressure: 700 Bar / 10,000 psi
Description
- Original pumps are built with 1 1/2 HP, 220V, 50/60 Hz, Single phases universal brushless motor.
- Internal relief valve (700 bars) protects the components and work safety.
- Pumps are included with 24V, 3 meters remote control cord.
- Quiet pumps comply OSHA noise limitation (80dBA at 700bar).
- EP211D specially designed for double-acting cylinders without the need for additional control valve and adapters.
- Conform to CE standards.
- Both models are available with Solenoid Valve version.
| Model No. | Acting | RPM 50/60 Hz |
Reservoir Capacity (c.c.) |
Usable Oil Capacity (c.c.) |
Motor | Valve | Weight (kg) |
|
|---|---|---|---|---|---|---|---|---|
| Type | Function | |||||||
| EP211S | Single | 2860 / 3450 | 11,000 | 9,500 | 1.12 kW 110V / 220V 50/60 Hz Single Phase |
2 Position / 2Way |
Hold / Retract |
40.0 |
| EP211SS* | ||||||||
| EP211D | Double | 3 Position / 4 Way |
Adv. / Hold / Retract |
|||||

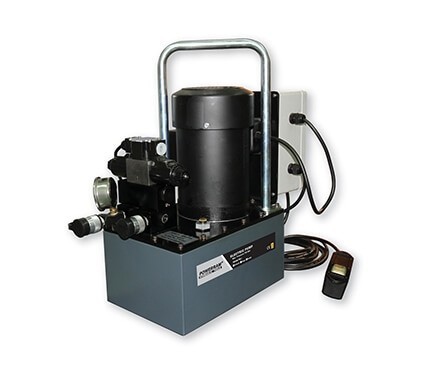

| EP211DS* | ||||||||
| * Solenoid version The weight is excluding the hydraulic oil. |
||||||||
