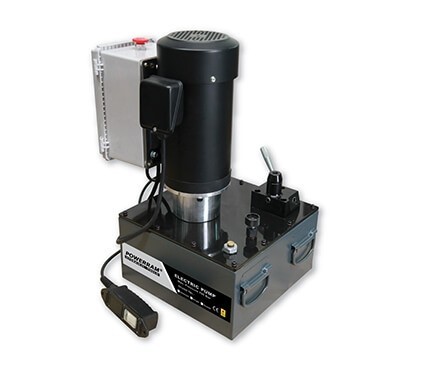

Electric Pumps – 20 Ltr / 2.24kW EP420
MODEL: EP420 SERIES
ELECTRIC PUMPS, 2.24KW, 20 LITER
Max. Working Pressure: 700 Bar / 10,000 psi
Description
- Original pumps are built with 2.24kW, 220/380V, 50/60Hz, 3 phases universal brushless motor.
- Internal relief valve (700 bars) protects the components and work safety.
- Pumps are included with 24V, 3 meters remote control cord.
- Quiet pumps comply OSHA noise limitation (80dBA at 700bar).
- EP420D specially designed for double-acting cylinders without the need for additional control valve and adapters.
- Internal relief valve limits pressure to 10,000 psi. External relief valve is adjustable from 1,000 to 10,000 psi.
- Conform to CE standards.
- Both models are available with Solenoid Valve version.
| Model No. | Acting | RPM 50/60 Hz |
Reservoir Capacity (c.c.) |
Usable Oil Capacity (c.c.) |
Motor | Valve | Weight (kg) |
|
|---|---|---|---|---|---|---|---|---|
| Type | Function | |||||||
| EP420S | Single | 1435 / 1735 | 20,000 | 18,000 | 2.24 kW 220V/380V 50/60 Hz 3 Phase |
2 Position / 2Way |
Hold / Retract |
65.0 |
| EP420SS* | ||||||||
| EP420D | Double | 3 Position / 4 Way |
Adv. / Hold / Retract |
|||||
| EP420DS | ||||||||
| *Solenoid version The weight is excluding the hydraulic oil. |
||||||||
