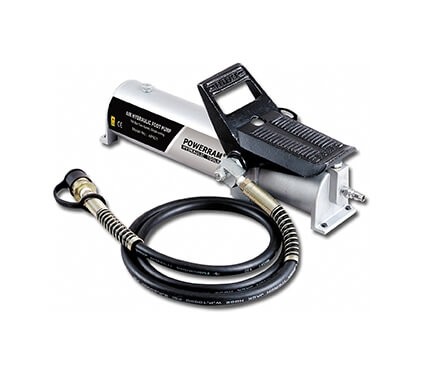

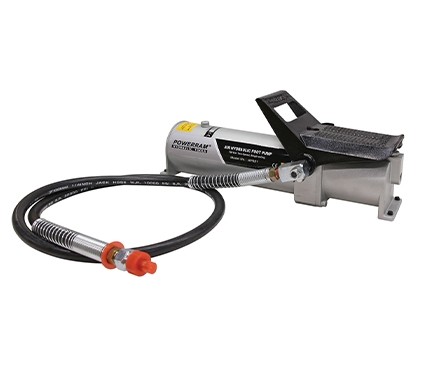

Air Hydraulic Foot Pumps AP921-AP922
MODEL: AP921 & AP922
Single acting model
Max. working pressure: 700 bar
Description
- Air-power hydraulic pump is designed for using with single-acting cylinders and tools.
- Rugged construction that most components are made of Aluminum alloy and built for long service life, easy operation and portability.
- Automatic overload relief setting as 10, 000 psi protects components in hydraulic system and ensure work safety.
- New inlet & outlet design features low exhausting air volume, quiet effect and can be operated in all directions.
| Model No. | Acting | Max.Pressure Output (psi) |
Air Pressure (kg) |
Reservori Capacity (c.c.) |
Usable Oil Capacity (c.c.) |
Valve | Weight (kg) |
|
|---|---|---|---|---|---|---|---|---|
| Type | Function | |||||||
| AP921 | Single | 10,000 | 7-10 | 850 | 750 | ─ | Advance | 6.1 |
| AP922 | Single | 10,000 | 7-10 | 850 | 750 | ─ | Advance | 6.1 |
