Description

• Double acting cylinder for holding, opening and closing the jaws for safe and secure grip on job.
• The easy jaw operating system prevent puller jaws from sliding and/or springing off the work object always.
• Self-centering design keeps the arms slide inwards or outwards simultaneously.
• Electric Pump advances and retracts the pushing cylinder only to prevent operating errors from happening.
• 50 Ton Cylinder is single-acting, spring return type with a maximum working pressure of 10,000 psi.
• Electric Hydraulic pump is two stage version ; the low pressure stage provides the fast stroking to save time ; the high pressure stage is controlled by remote hand switch.
• Puller can be adjusted 5 degree vertically.
• The cart has two swivel castors which can provide the movement of cart easily.
• Four extensions are included for the needs on extra stroke.

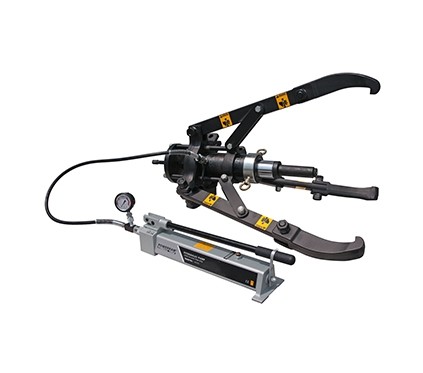

• PRE50T is designed as the competitive version for costwise option.
