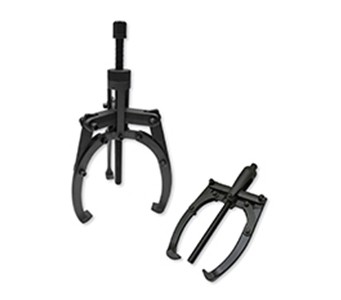

Mechanical Easy Pullers (2 & 3 Way) PM50-PM152
Capacity: 2 – 10 Ton
Spread: 120 ~ 380mm
SIMPLE AND EASY PULLING JOB
The most simple and efficient design, the screw-Operated jaws bring the users to position the puller on the part quickly and precisely with one person operating only.
Description
| Manual Easy Pullers (2,3 Way) | |||||||||
|---|---|---|---|---|---|---|---|---|---|

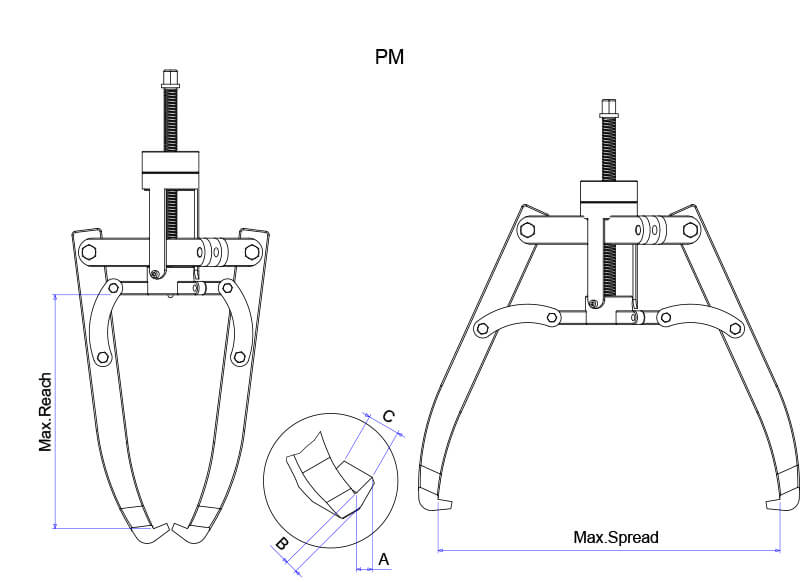

| Capacity | Model No. | Jaws | Reach (Max. mm) | Spread (Max. mm) | Shaft Dim. | Jaw Tip (mm) | Weight (kg) | ||
| A | B | C | |||||||
| 2 Ton | PM50 | 3 | 80 | 120 | Φ5/8″x8T | 8 | 6 | 15 | 1.3 |
| 2 Ton | PM52 | 2 | 80 | 120 | Φ5/8″x8T | 8 | 6 | 15 | 0.9 |
| 5 Ton | PM100 | 3 | 160 | 250 | Φ3/4″x8T | 11 | 10 | 25 | 3.7 |
| 5 Ton | PM102 | 2 | 160 | 250 | Φ3/4″x8T | 11 | 10 | 25 | 3.1 |
| 10 Ton | PM150 | 3 | 230 | 380 | Φ7/8″x6T | 14 | 10 | 29 | 8.8 |
| 10 Ton | PM152 | 2 | 230 | 380 | Φ7/8″x6T | 14 | 10 | 29 | 6.7 |
