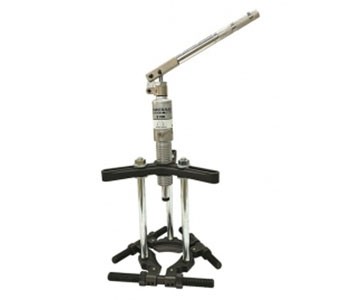

Tri-Section Pullers P3412-P31212
Capacity: 4 – 12 Ton
Reach: 211 – 284mm
Max Spread: 160 – 340mm
Description
- The set including Tri-section plate for convenient and safe pulling job.
- Wedge-shaped edge allows removal of the most hard to grip components.
- The firm grip behind bearing’s inner & outer rings ensures the pulling force not to be transmitted through the rolling parts.
- The tri-section plates design creates the most even force distribution and the maximizing spread.
| Tri-section Pullers | |||||||
|---|---|---|---|---|---|---|---|
| Capacity | Model No. | Reach | Spread (mm) | Pump Body Model No. |
Overall Width | Weight | |
| (Max. mm) | C (Min) | D (Max) | (mm) | (kg) | |||
| 4 Ton | P3412 | 211 | 30 | 160 | PM401 | 240 | 19 |
| 6 Ton | P3612 | 243 | 50 | 210 | PM601 | 285 | 29 |
| 8 Ton | P3812 | 243 | 50 | 270 | PM801 | 460 | 32 |
| 12 Ton | P31212 | 284 | 90 | 340 | PM1201 | 660 | 65 |
