Double Acting / Hollow Type ADHC
-
Model: ADHC SeriesCapacity: 30 & 60 TonsStroke: 50 – 250 mmHollow, Double ActingMax. Working Pressure: 700 bar / 10,000 psi
Description
- Half weight of steel cylinders
- Heavy duty spring for easy and full retraction.
- Carry handles are standard for all models.
- Hard-Anodized housing and piston reduce wear and corosion.
- Rod wiper protects inner rod from dirt.
- Stop ring provides blow-out protection for piston.

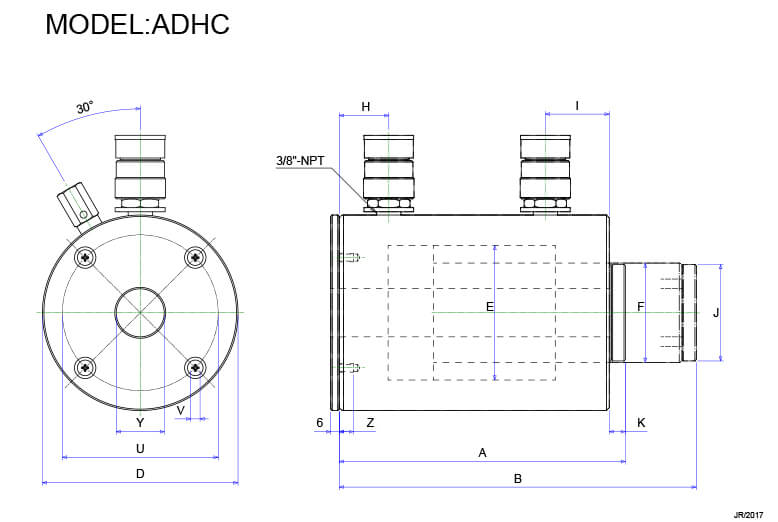

| del Number | Capacity (tons) | Stroke (mm) | Maximum Cylinder Capacity (tons) | Cylinder Effective Area (cm2) | Oil Capacity (cm3) | Collapsed Height A (mm) | Extended Height B (mm) | Center Hole Diameter Y (mm) | Weight (kg) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Push | Pull | Push | Pull | Push | Pull | |||||||

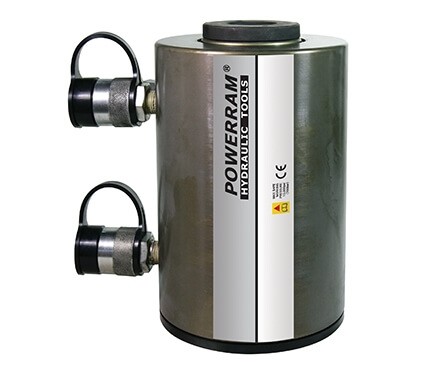

| ADHC302 | 30 | 50 | 38.5 | 22.7 | 55 | 32.4 | 275 | 162 | 202 | 252 | 34 | 9.6 |

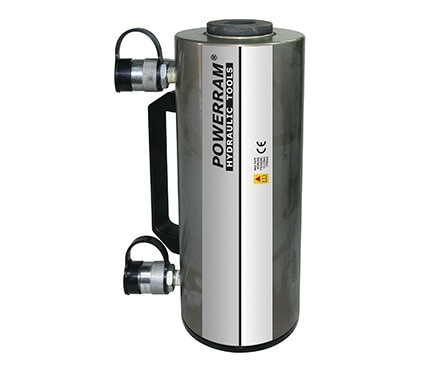

| ADHC306 | 150 | 825 | 486 | 327 | 477 | 34 | 14.8 | |||||
| ADHC3010 | 250 | 1374 | 810 | 430 | 680 | 34 | 16.0 | |||||
| ADHC602 | 60 | 50 | 62.6 | 31 | 89.5 | 44.2 | 448 | 221 | 250 | 300 | 54 | 15.5 |
| ADHC606 | 150 | 1342 | 662 | 350 | 500 | 54 | 23.0 | |||||
| ADHC6010 | 250 | 2237 | 1104 | 433 | 683 | 54 | 30.5 | |||||
